Luminescence 96 Automate
All Hands Off Deck

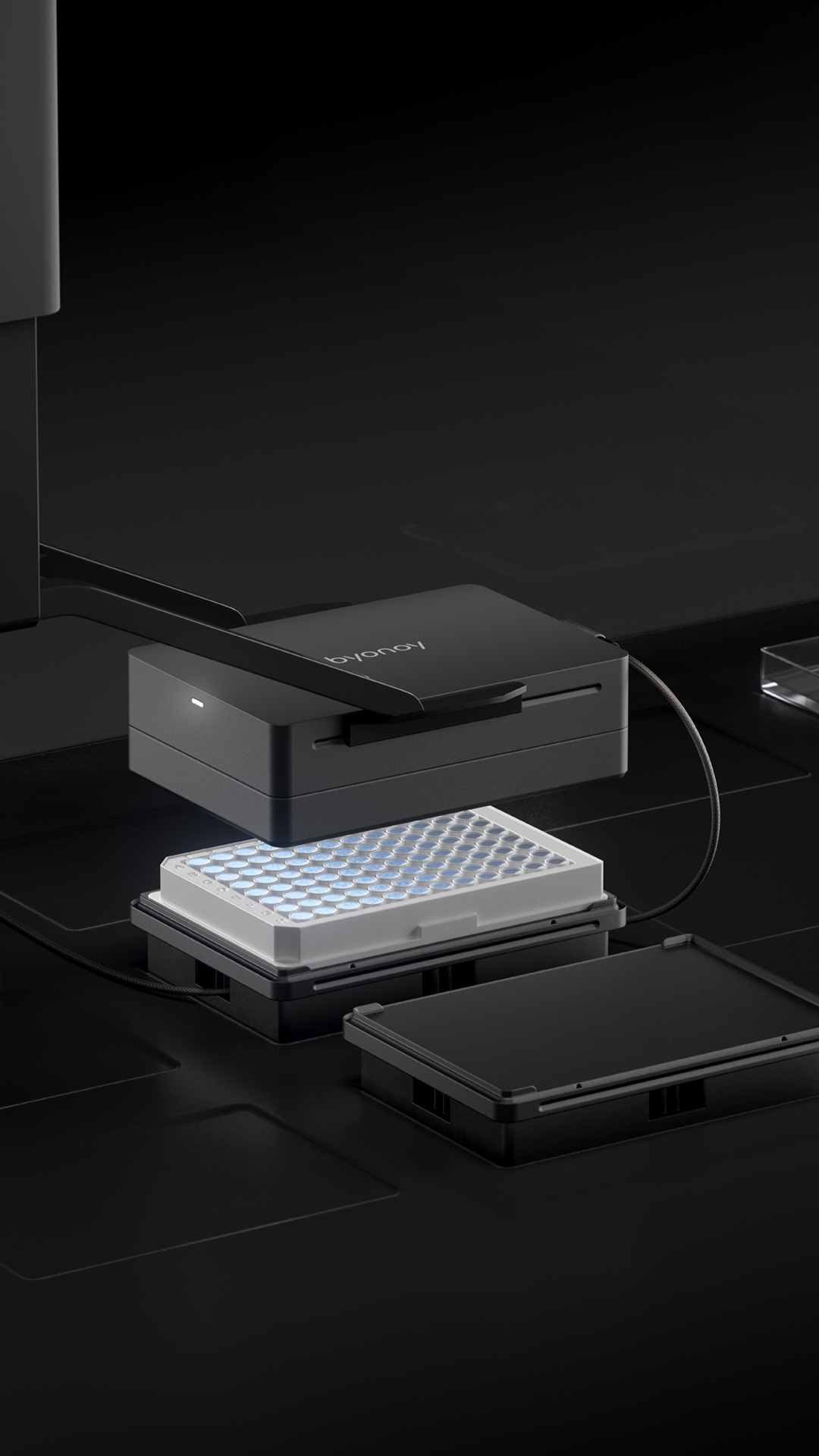

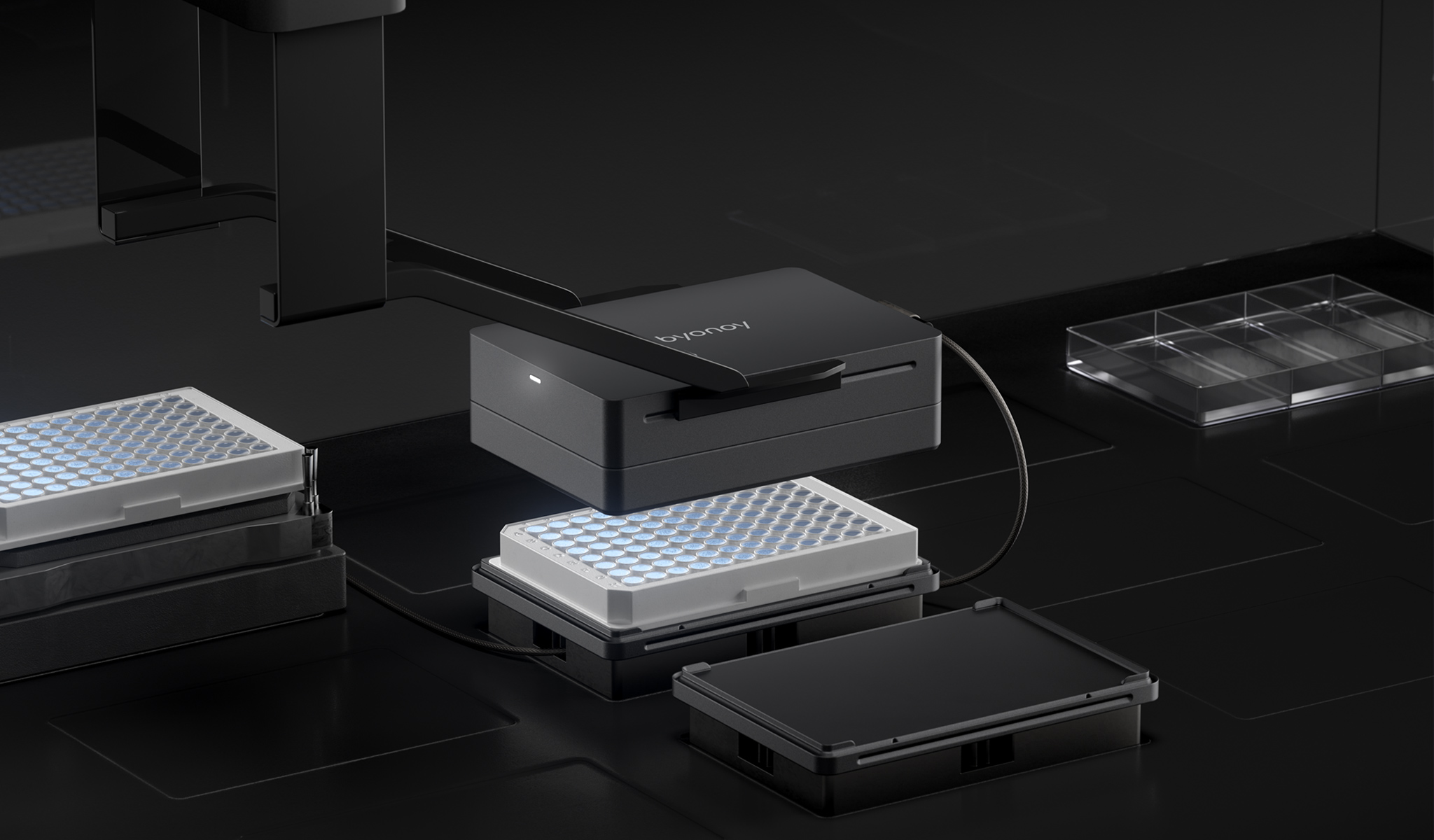

Luminescence 96 Automate is the only truly on-deck plate luminometer in the world. ​

Easily integrated, it enables end-to-end automation of any luminescence workflow.

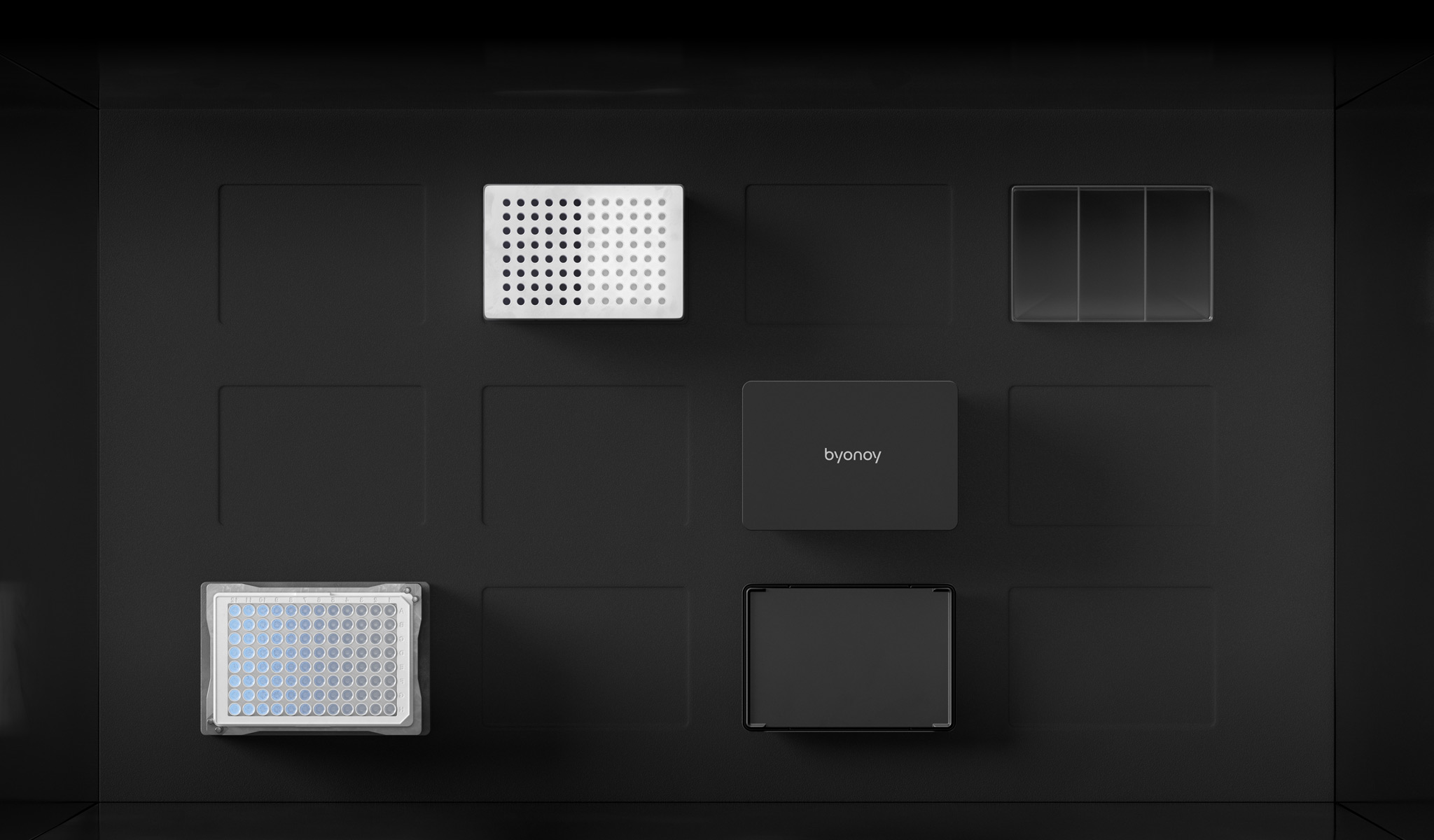

Easy Integration

SBS footprint

saves deck space

USB accessibility

via multidirectional adapter

Gripper grooves

for top and bottom readout

13.8 × 9.5 cm



upper hull weight

Peak Performance

Despite its ultra-compact design, Luminescence 96 Automate offers outstanding performance.


Luminescence 96 Automate has integrated 96 highly sensitive silicon photomultipliers.

Sophisticated electronics parse the incredible amount of information cascading from these highly sensitive detectors.

A shutter reduces dark count noise and background phosphorescence is canceled out by a filter.

Each of the 96 detectors adapts according to the signal intensity of the corresponding well, reaching a sensitivity of 100 fmol ATP/well.

Dynamic Range

Luminescence 96 Automate has a linear dynamic range of up to 8 decades. To access the full potential of the silicon photomultipliers, three readout modes are used: photon counting, integration, and micro integration.

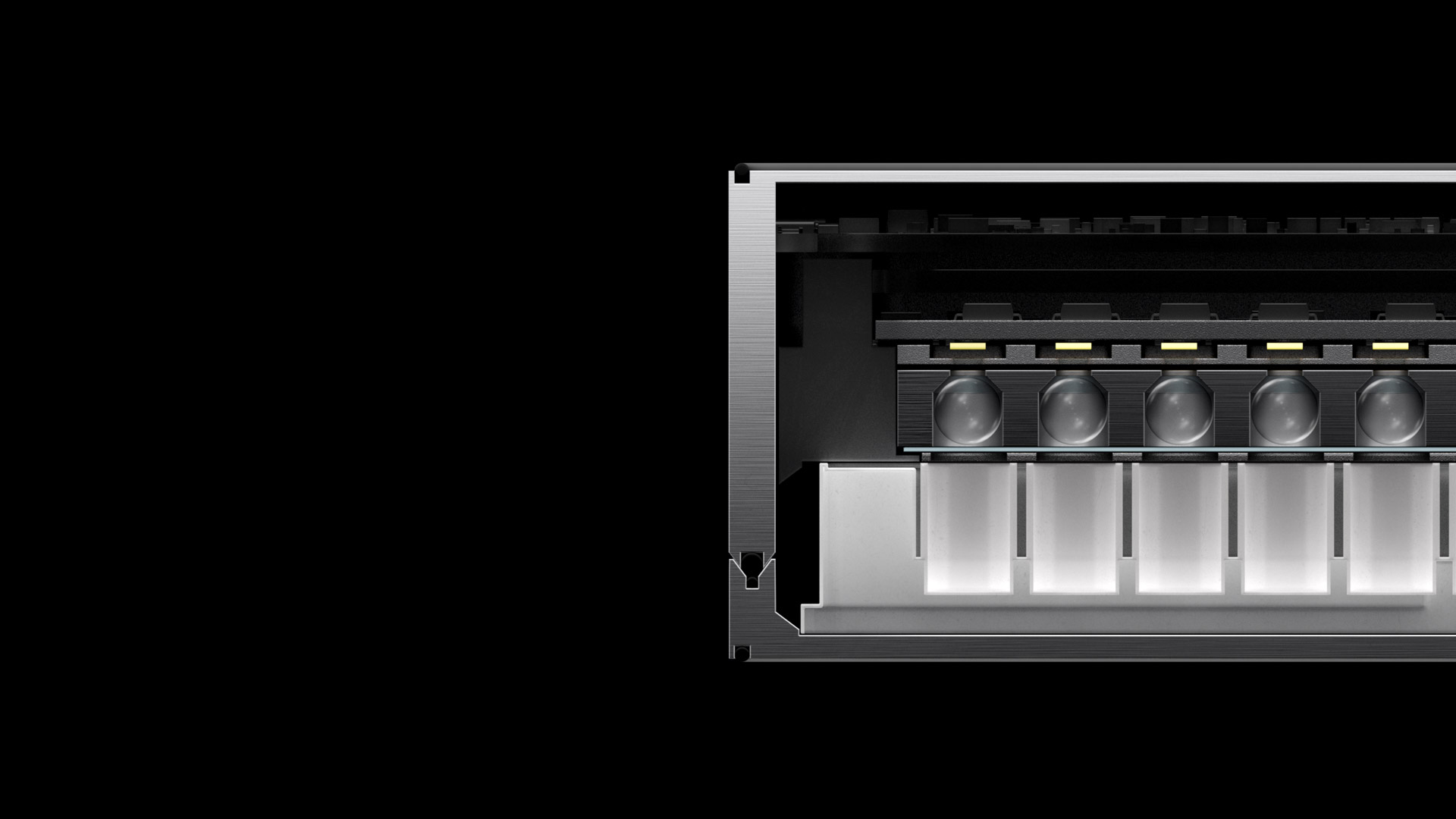

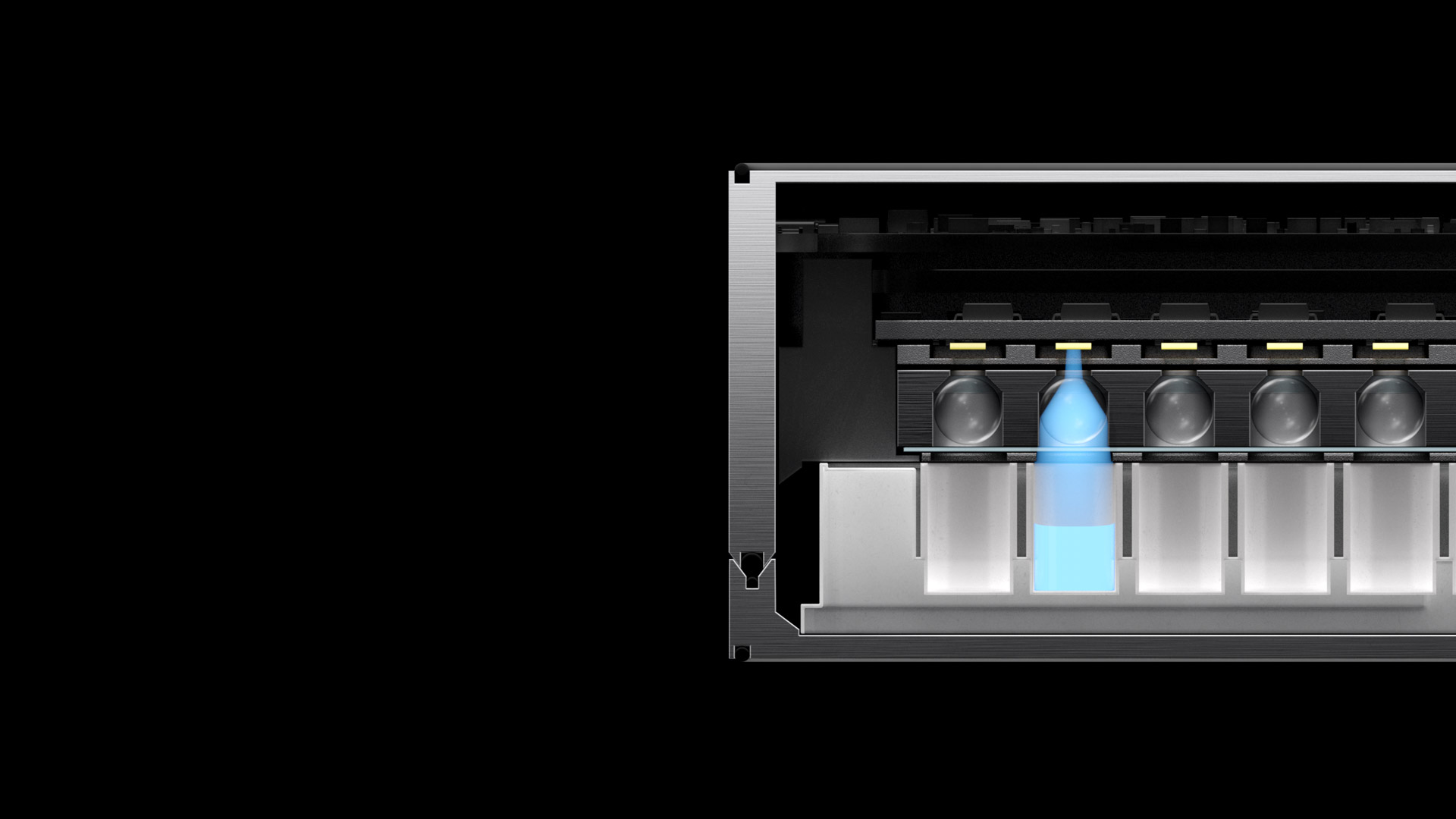

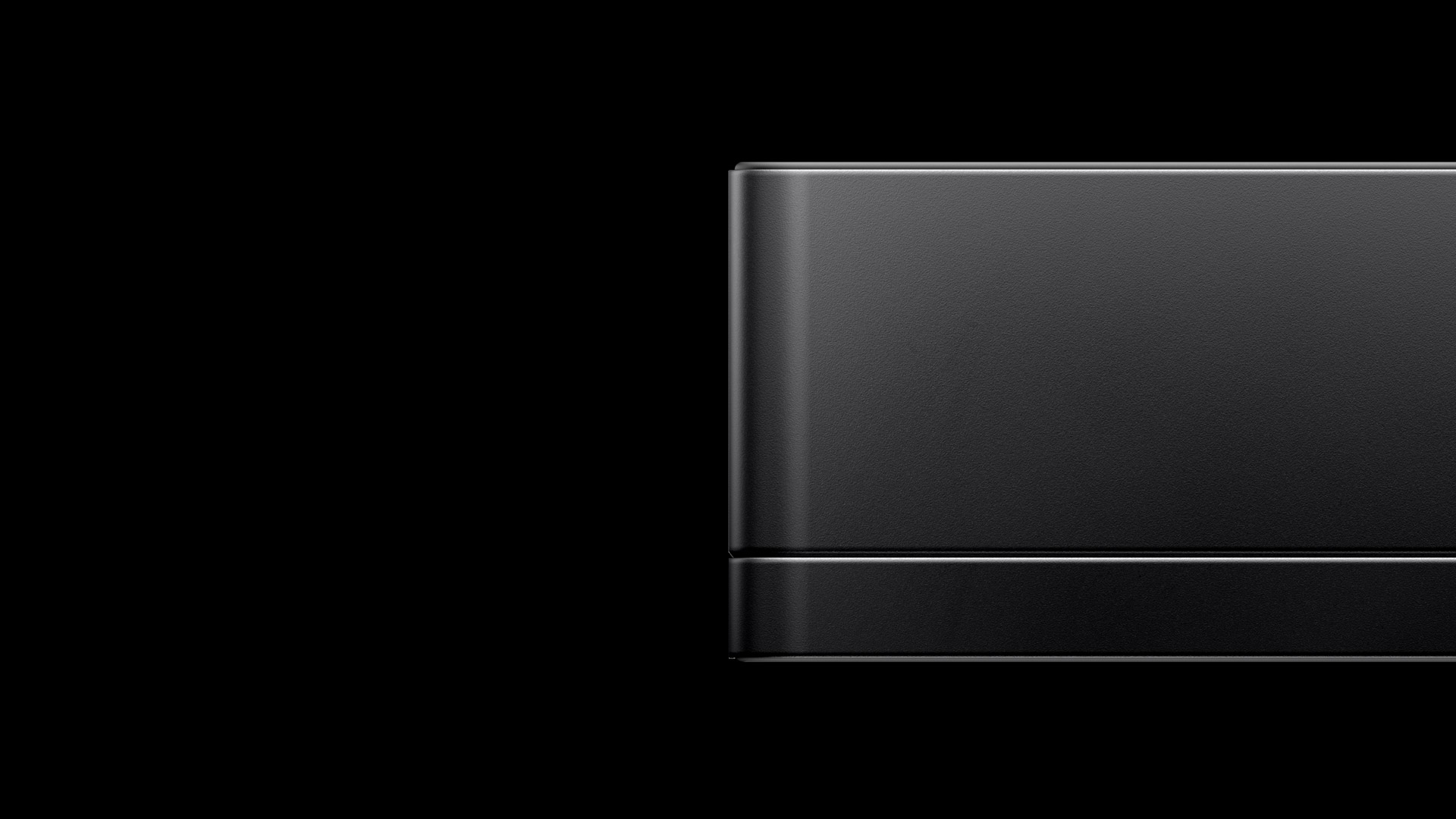

With Luminescence 96 Automate, every millimeter counts. By bringing the microplate within a 10th of a millimeter of the detection unit, cross-talk is, at < 0.7 x 10⁻⁶, practically eliminated.

Open System

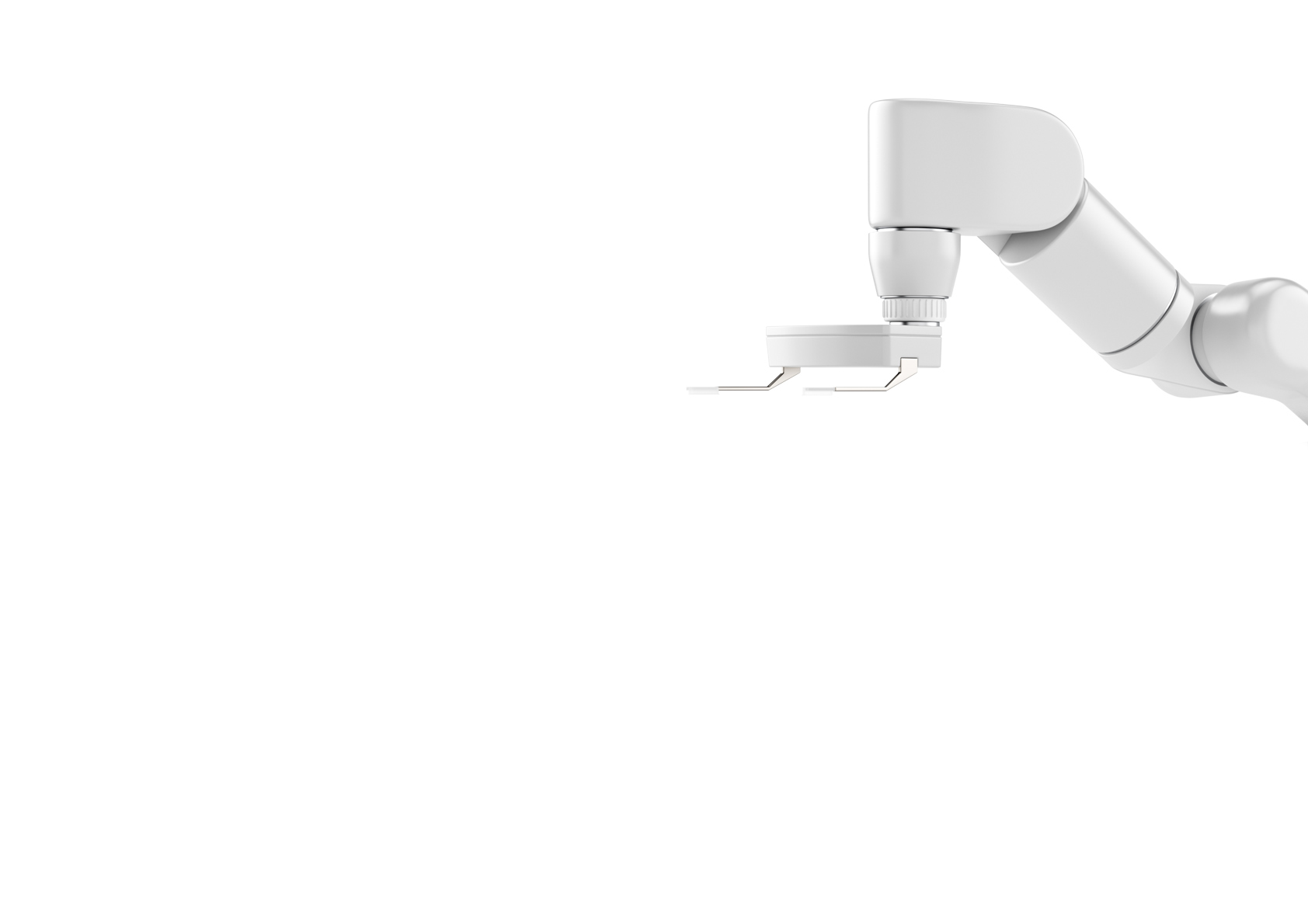

With its small footprint, light weight, and z-axis serviceability, Luminescence 96 Automate is designed to enable modular integration and to be platform agnostic.

 Open System Byonoy Luminescence 96 Automate

An Intuitive Way to Results

The dedicated Luminescence 96 App streamlines your interactions with Luminescence 96 Automate. We are happy to support you in integrating the device into an existing workflow using Sila2.
USB-C <br> data transfer An Intuitive Way to Results Luminescence 96 Automate
data transfer
Sila 2 An Intuitive Way to Results Luminescence 96 Automate
Sila 2
Learn more

Explore the Possibilities


Reporter gene assays

Access the power of genetic technology to sensitively evaluate gene expression.


Cell viability assays

Easily answer the most essential question in any cell culture workflow.



Take advantage of increased sensitivity with luminescence-based immunoassays.

Care Packages

Our Byonoy Care Packages provide additional services and support for those required to have it, or those who just want it.

We have your back – so you can focus on your research.

Illuminate your lab

Let’s automate your assay!
